북굴절 계측기

CRYSTA

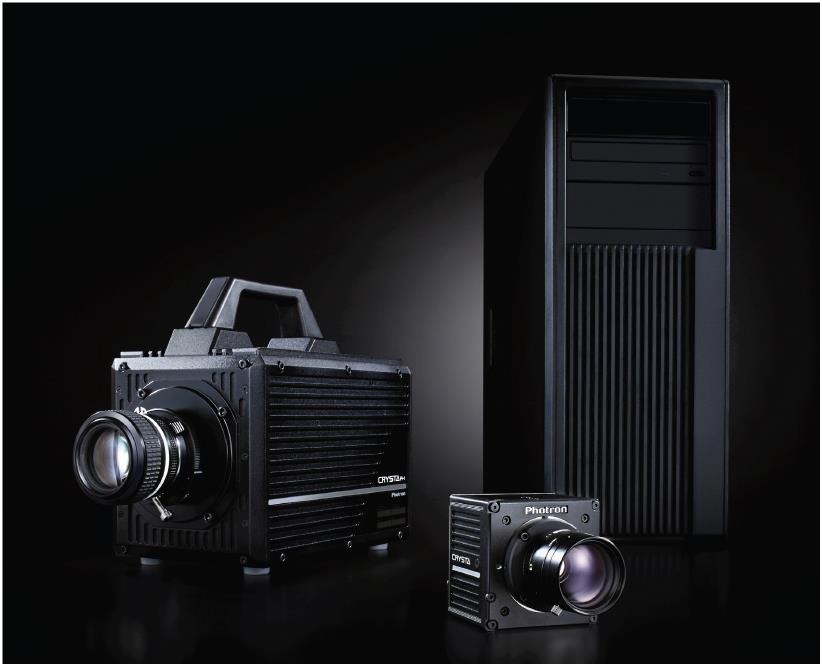

편광 고속 카메라 CRYSTA

유리,렌즈 등과 같이 빛이 투과되는 재료의 내부 응력과 배향 구조를 실시간(동영상 가능)으로 계측할 수 있는 편광 고속도 카메라
CCD센서에 직선 편광자가 삽입 되어있어 회전형 편광판 불필요
초고속 편광 이미지 센서 탑재로 타사 장비 대비 1,000배 빠른 측정이 가능
기존 계측기의 측정으로는 표현이 어려웠던 다양한 물리적 양과 특성을 시각화 및 정량화가 가능
편광 계측에 필요한 휘도 정보를 10,000fps/sec(최대) 습득 가능

브로셔 다운로드

도입문의

Feature

CRYSTA PI-1P: Super High-Speed polarization imaging
CRYSTA PI-1WP: Super High-Speed polarization imaging
CRYSTA PI-5P: Real-time transfer to PC memory and SDK accessory
CRYSTA PI-5WP: Real-time transfer to PC memory and SDK accessory

Image sensor

CRYSTA PI-1P: High-speed polarization image sensor
CRYSTA PI-1WP: High-speed polarization image sensor
CRYSTA PI-5P: High-speed polarization image sensor
CRYSTA PI-5WP: High-speed polarization image sensor

Polarizer

CRYSTA PI-1P: Linear polarizer
CRYSTA PI-1WP: Phase shifter + linear polarizer
CRYSTA PI-5P: Linear polarizer
CRYSTA PI-5WP: Phase shifter + linear polarizer

Polarization operating wavelength range (nm)

CRYSTA PI-1P: 520 - 570
CRYSTA PI-1WP: 520 - 570
CRYSTA PI-5P: 520 - 570
CRYSTA PI-5WP: 520 - 570

Customization of operating wavelength

CRYSTA PI-1P: Contact Us
CRYSTA PI-1WP: Contact Us
CRYSTA PI-5P: Contact Us
CRYSTA PI-5WP: Contact Us

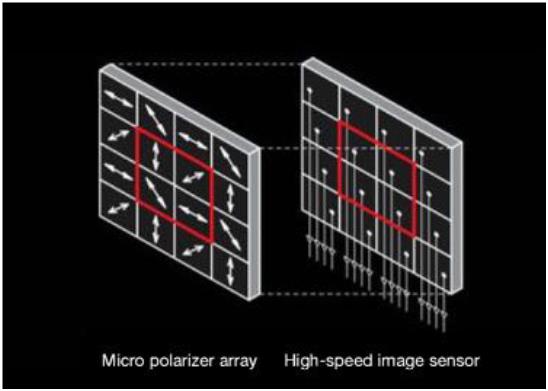

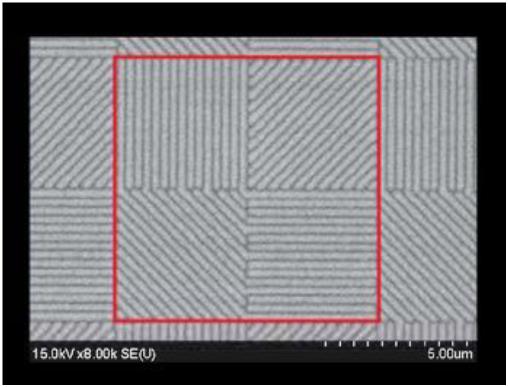

Polarizer structure of four neighboring pixels(°)

CRYSTA PI-1P: 0, 45, 90, 135
CRYSTA PI-1WP: Contact Us
CRYSTA PI-5P: 0, 45, 90, 135
CRYSTA PI-5WP: Contact Us

Customization of polarizer structure

CRYSTA PI-1P: Contact Us
CRYSTA PI-1WP: Contact Us
CRYSTA PI-5P: Contact Us
CRYSTA PI-5WP: Contact Us

Digital output (bit)

CRYSTA PI-1P: 12
CRYSTA PI-1WP: 12
CRYSTA PI-5P: 12
CRYSTA PI-5WP: 12

Resolution(Max) @ polarization imaging

CRYSTA PI-1P: 1,024 x 1,024
CRYSTA PI-1WP: 1,024 x 1,024
CRYSTA PI-5P: 2,560 x 2,048
CRYSTA PI-5WP: 848 x 680

Resolution(Max) @ monochrome imaging

CRYSTA PI-1P: 1,024 x 1,024
CRYSTA PI-1WP: 1,024 x 1,024
CRYSTA PI-5P: 2,560 x 2,048
CRYSTA PI-5WP: 848 x 680

Frame rate (full frame)

CRYSTA PI-1P: 60 - 7,000
CRYSTA PI-1WP: 60 - 7,000
CRYSTA PI-5P: 15 - 250
CRYSTA PI-5WP: 15 - 250

Frame rate(windowing)

CRYSTA PI-1P: 1,500,000
CRYSTA PI-1WP: 1,500,000
CRYSTA PI-5P: 10,000
CRYSTA PI-5WP: 10,000

Exposure time(Min) (nesec)^*2

CRYSTA PI-1P: 369
CRYSTA PI-1WP: 369
CRYSTA PI-5P: 2,893
CRYSTA PI-5WP: 2,893

Lens mount

CRYSTA PI-1P: Interchangeable F-mount and C-mount using supplied adapters
CRYSTA PI-1WP: Interchangeable F-mount and C-mount using supplied adapters
CRYSTA PI-5P: C-Mount
CRYSTA PI-5WP: C-Mount

Interface

CRYSTA PI-1P: 1000Base-T
CRYSTA PI-1WP: 1000Base-T
CRYSTA PI-5P: PCI-Express
CRYSTA PI-5WP: PCI-Express

Output data format

CRYSTA PI-1P: RAW, BMP and other
CRYSTA PI-1WP: RAW, BMP and other
CRYSTA PI-5P: RAW, BMP and other
CRYSTA PI-5WP: RAW, BMP and other

SDK and sample software

CRYSTA PI-1P: Standard, C/C++
CRYSTA PI-1WP: Standard, C/C++
CRYSTA PI-5P: Standard, C/C++
CRYSTA PI-5WP: Standard, C/C++

Operating temp of camera (head)(℃)

CRYSTA PI-1P: 0 - 40 (without condensation)
CRYSTA PI-1WP: 0 - 40 (without condensation)
CRYSTA PI-5P: 0 - 40 (without condensation)
CRYSTA PI-5WP: 0 - 40 (without condensation)

Storage temp of camera (head)(℃)

CRYSTA PI-1P: -20 ~ 60 (without condensation)
CRYSTA PI-1WP: -20 ~ 60 (without condensation)
CRYSTA PI-5P: -20 ~ 60 (without condensation)
CRYSTA PI-5WP: -20 ~ 60 (without condensation)

Operating humidity of camera (head)(%)

CRYSTA PI-1P: Below 85 (without condensation)
CRYSTA PI-1WP: Below 85 (without condensation)
CRYSTA PI-5P: Below 80 (without condensation)
CRYSTA PI-5WP: Below 80 (without condensation)

Storage humidity of camera (head)(%)

CRYSTA PI-1P: Below 85 (without condensation)
CRYSTA PI-1WP: Below 85 (without condensation)
CRYSTA PI-5P: Below 80 (without condensation)
CRYSTA PI-5WP: Below 80 (without condensation)

Operating temp of control PC (℃)

CRYSTA PI-1P: -
CRYSTA PI-1WP: -
CRYSTA PI-5P: 5 - 35 (without condensation)
CRYSTA PI-5WP: 5 - 35 (without condensation)

Storage temp of control PC (℃)

CRYSTA PI-1P: -
CRYSTA PI-1WP: -
CRYSTA PI-5P: -40 ~ 60 (without condensation)
CRYSTA PI-5WP: -40 ~ 60 (without condensation)

Operating humidity of control PC (%)

CRYSTA PI-1P: -
CRYSTA PI-1WP: -
CRYSTA PI-5P: 8 - 85 (without condensation)
CRYSTA PI-5WP: 8 - 85 (without condensation)

torage humidity of control PC (%)

CRYSTA PI-1P: -
CRYSTA PI-1WP: -
CRYSTA PI-5P: 8 - 90 (without condensation)
CRYSTA PI-5WP: 8 - 90 (without condensation)

AC supply voltage (VAC)^*3

CRYSTA PI-1P: 100
CRYSTA PI-1WP: 100
CRYSTA PI-5P: 100
CRYSTA PI-5WP: 100

AC supply frequency (Hz)

CRYSTA PI-1P: 50-60
CRYSTA PI-1WP: 50-60
CRYSTA PI-5P: 50-60
CRYSTA PI-5WP: 50-60

AC power consumption (VA)

CRYSTA PI-1P: 130
CRYSTA PI-1WP: 130
CRYSTA PI-5P: 600
CRYSTA PI-5WP: 600

DC supply voltage (V)

CRYSTA PI-1P: 20-36
CRYSTA PI-1WP: 20-36
CRYSTA PI-5P: 12
CRYSTA PI-5WP: 12

DC power consumption (VA)

CRYSTA PI-1P: 130
CRYSTA PI-1WP: 130
CRYSTA PI-5P: 20
CRYSTA PI-5WP: 20

Memory capacity (GB)

CRYSTA PI-1P: 32
CRYSTA PI-1WP: 32
CRYSTA PI-5P: 32 (memory size of standard PC)
CRYSTA PI-5WP: 32 (memory size of standard PC)

Record duration (seconds)

CRYSTA PI-1P: 2.98 (at 7,500fps)
CRYSTA PI-1WP: 2.98 (at 7,500fps)
CRYSTA PI-5P: 11.46 (at 250fps)
CRYSTA PI-5WP: 11.46 (at 250fps)

Camera head external dimensions (mm)

CRYSTA PI-1P: 153 × 165 × 243 (WHD)
CRYSTA PI-1WP: 153 × 165 × 243 (WHD)
CRYSTA PI-5P: 74.4 × 74.5 × 62.35 (WHD)
CRYSTA PI-5WP: 74.4 × 74.5 × 62.35 (WHD)

Camera head weight (kg)

CRYSTA PI-1P: 7.4
CRYSTA PI-1WP: 7.4
CRYSTA PI-5P: 0.48
CRYSTA PI-5WP: 0.48

Camera head cable length (m)

CRYSTA PI-1P: -
CRYSTA PI-1WP: -
CRYSTA PI-5P: 5, 15
CRYSTA PI-5WP: 5, 15

Trigger Type

CRYSTA PI-1P: Start, End, Random and other
CRYSTA PI-1WP: Start, End, Random and other
CRYSTA PI-5P: Start, End, Random and other
CRYSTA PI-5WP: Start, End, Random and other

External synchronization

CRYSTA PI-1P: Possible
CRYSTA PI-1WP: Possible
CRYSTA PI-5P: Impossible
CRYSTA PI-5WP: Impossible
