자동차 헤드램프 배광분포 실험실형 측정시스템
박스형 스크린 광도계(KMP)
-

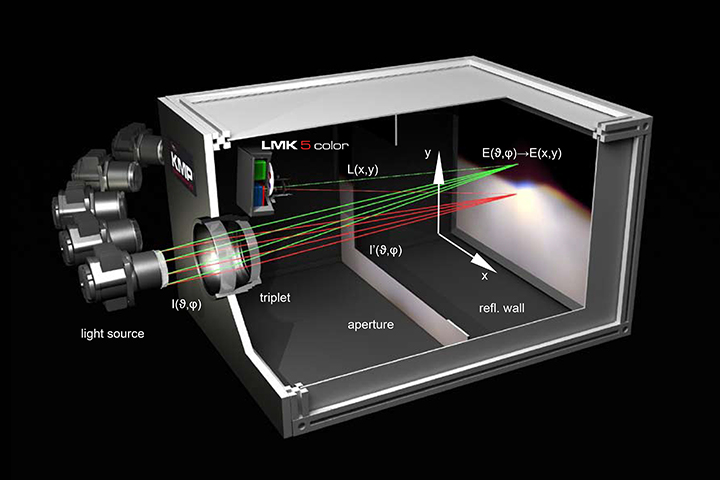

LMK를 이용한 Indirect 방식의 헤드램프 측정 시스템
-

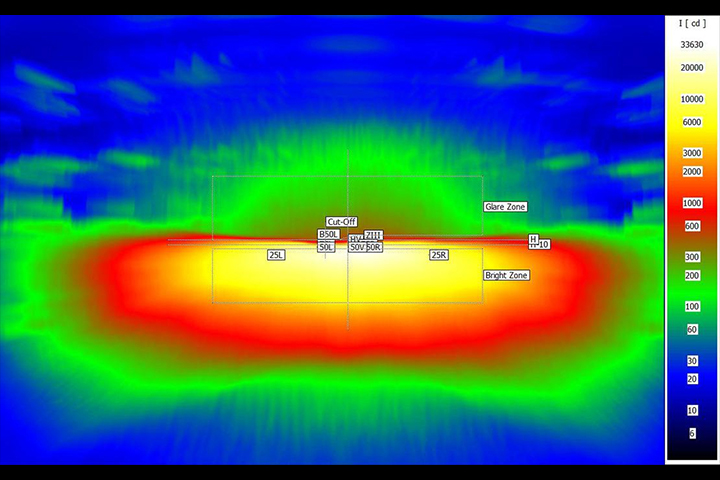

자동차 헤드램프의 프로젝트 빔 분야에서의 활용이 특화된 시스템으로 간접적 배광분포 측정 가능
-
광학 이미지 프로세싱을 통해 측정거리 감소 가능
-
기존 측정 시간 30분에서 10초 이내로 측정 시간 감소
-

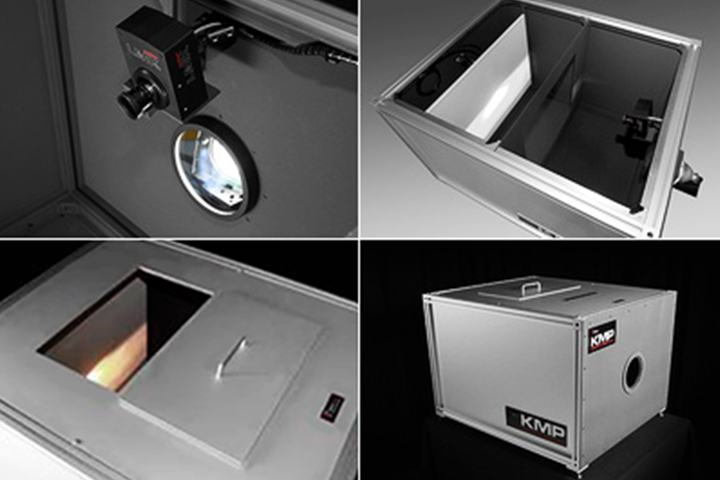

25m 의 해드램프 측정 시스템을 1m 크기의 소형 박스 타입으로 대체 가능
-
유럽/북미 법규 측정(ECE / SAE Headlamp Regulation )
-
Achromat Lens를 사용하여 12cm 이내 대상물 측정 가능
-
Photometric(휘도, 조도, 광도, 광속 등), Colorimetric(색도, 색차 등) 측정
Product
KMP
Geometrical dimension
980 mm x 850 mm x 650 mm
Size of the measurement object
< 120mm
(max. diameter of the light emitting surface)
Camera sensor
CCD Sony ICX 285 AL (2/3");
effective Pixel ca. 1,380 (H) x 130 (V); 14 Bit digital
Interface
Gigabit Ethernet Interface (GigE ®)
Spectral missmatch
V(λ) [f1' < 3.5 %]; X(λ) [f1* < 4 %]
Z(λ) [f1- < 6 %]; V'(λ) [f1* < 6 %]
Measuring range
Adaptable by using different integration/exposure times
100 μs - 15 s → ca. 3 Mcd - 20 cd
Higher intensities can be measured using optional grey filters
Angular resolution
up to 0.01º
Image field
±24º horizontal; ±15º vertical
Calibration uncertainty
Focusable lens ΔL [< 2.5 %]
Repeatability
ΔL [< 0.1 %]; Δx,y [< 0.0001]
Uniformity
ΔL [< 3 %]
Measurable contrast
Common 1:1,000 with measurement conditions according to CIE TC2-59 Draft characteristic f25
Measurement period
< 1 min for a full field luminance intensity distribution
(e.g. ±24º; ±15º; 0.01º)
Measurement object
Reflector lamps, Headlamps, Airfield lighting etc.
KMP Measurement object
Basic technical data
Automotive
Airfield
Size of the device under test
< 120 mm
< 190 mm
Typical measuring distance
25 m to infinity
10 m to infinity
Object field
horizontal ±24º, vertical ±15º
horizontal ±22º, vertical ±15º
Resolution
≥ 0.01º
≥ 0.1º
Measuring range
0.3 cd to 50 Mcd
5 cd to 10 Mcd
Measurable contrast
1:10,000
1:100
Measuring time
seconds
seconds
Dimensions (L x W x H)
980 mm x 850 mm x 650 mm
980 mm x 850 mm x 650 mm
