북굴절 계측기

Rheo-PI

편광 이미징 유변 광학 계측기

Rheo-PI

rheo
rheo
rheo
rheo
rheo
rheo
rheo
rheo
rheo
rheo
  • Soft matter(유변 물질 ex:에멀젼)의 변화를 가시화해서 보여주는 것이 가능

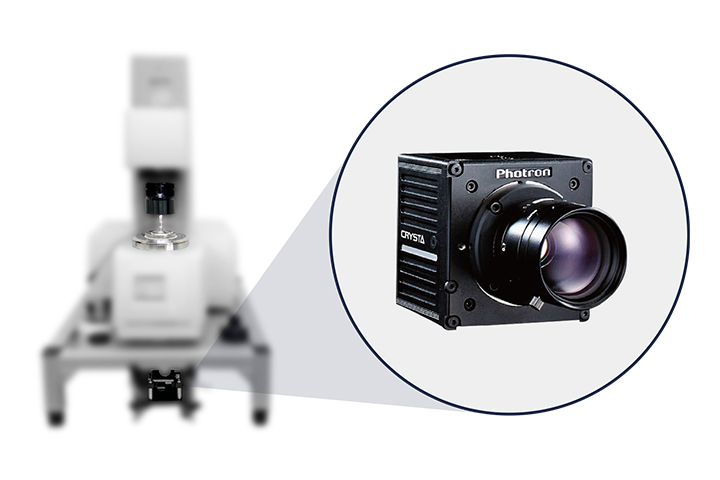

  • 기존 MCR 레오미터를 사용하고 계신 경우, CRYSTA 카메라만 추가하는 식으로 저렴한 비용으로 사용 가능

  • 초고속 편광 이미지 센서 탑재로 빠른, 실시간(동영상 가능) 측정이 가능

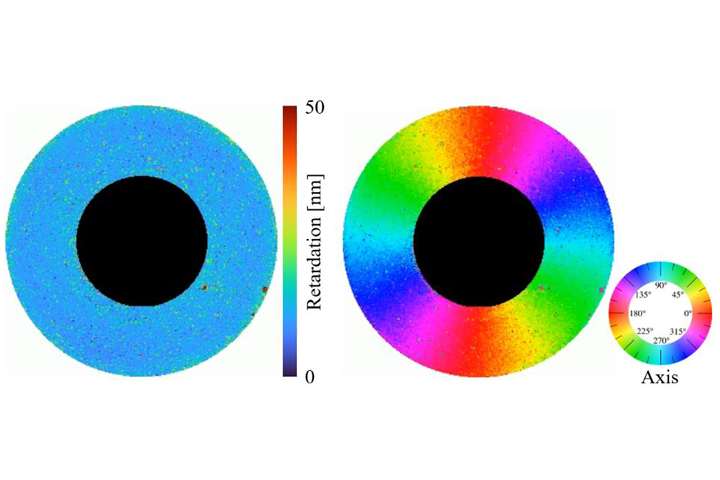

  • 2차원으로 맵핑되어 변곡점에서의 변화가 동시에 파악 가능

  • 측정결과를 수치 및 도표로 정량화 표시가 가능

제품 사양

Product

Rheo-PI

Model

CRYSTA PI-5WP

Feature

Real-time transfer to PC memory and SDK accessory

Image sensor

High-speed polarization image sensor

Polarizer

Phase shifter + linear polarizer

Polarization operating wavelength range (nm)

520 - 570

Customiztion of operating wavelength

Contact Us

Polarizer structure of four neighboring pixels (˚)

Contact Us

Customiztion of polarizer structure

Contact Us

Digital output (bit)

12

Resolution(Max) @ polarization imaging

848 x 680

Resolution(Max) @ monochrome imaging

848 x 680

Frame rate (full frame)

15 - 250

Frame rate (windowing)

10,000

Exposure time(Min) (nsec)*²

2,893

Lens mount

C-Mount

Interface

PCI-Express

Output data format

RAW, BMP and other

SDK and sample software

Standard, C/C++

Operating temp of camera (head) (℃)

0 - 40 (without condensation)

Storage temp of camera (head) (℃)

-20 ~ 60 (without condensation)

Operating humidity of camera (head) (%)

Below 80 (without condensation)

Storage humidity of camera (head) (%)

Below 80 (without condensation)

Operating temp of control PC (℃)

5 - 35 (without condensation)

Storage temp of control PC (℃)

-40 ~ 60 (without condensation)

Operating humidity of control PC (%)

8 - 85 (without condensation)

Storage humidity of control PC (%)

8 - 90 (without condensation)

AC supply voltage (V)*³

100

AC supply frequency (Hz)

50 - 60

AC power consumption (VA)

600

DC supply voltage (V)

12

DC power consumption (VA)

20

Memory capacity (GB)

32 (memory size of standard PC)

Record duation (seconds)

11.46 (at 250fps)

Camera (head) external dimensions (mm)

74.4 x 74.5 x 62.35 (WHD)

Camera (head) weight (kg)

0.48

Camera head cable length (m)

5, 15

Trigger type

Start, End, Random and other

External synchronization

Impossible
