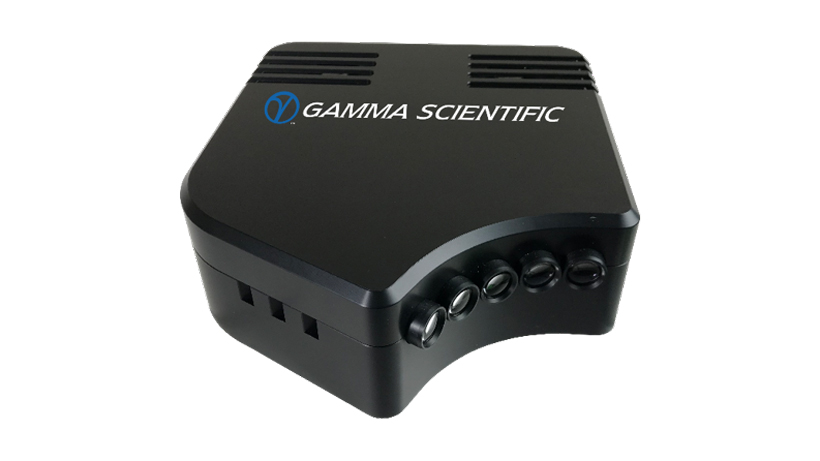

다각도 멀티 앵글 스펙트로미터(GS 1164, GS117F Series)
-

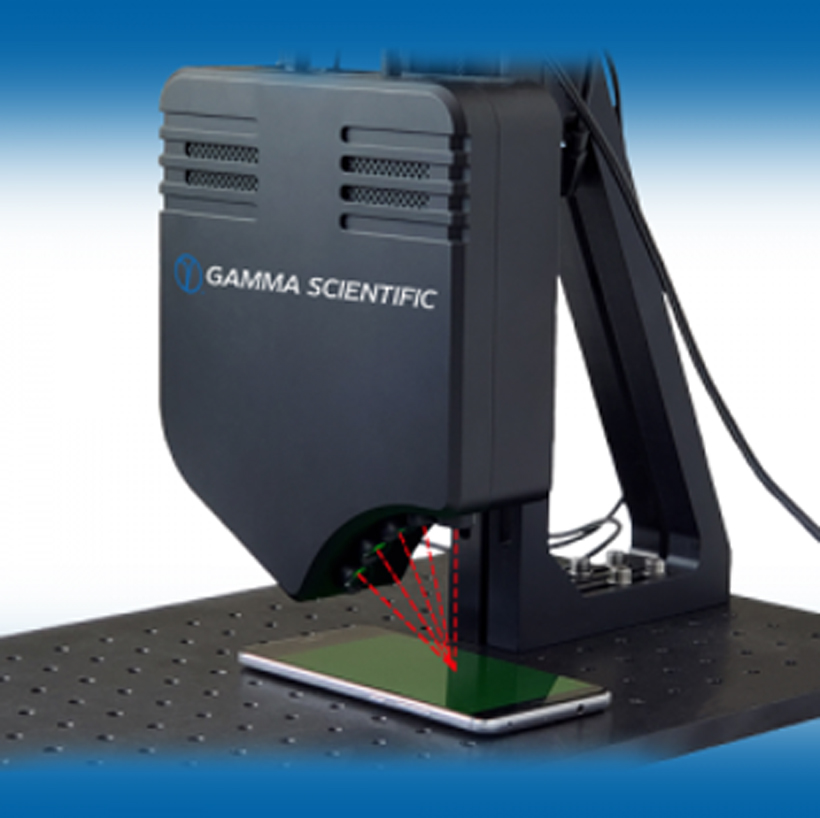

세 가지 이상의 각도에서 색상과 밝기를 동시에 측정 가능
-
생산라인에 적합한 장비로 매우 빠른 측정속도와 동시 스펙트럼 측정 기술로 일반 필터 기반 색차계보다 필터 매칭 접합성이 우수
- Sensor
-
CMOS Linear Image Sensor
- Wavelength Range
-
-
380 to 780 nm
-
- Wavelength Data Increment
-
-
1 nm
-
- Numbers of Angles
-
-
4 angles, 0/30/45/60 degrees
-
- Measurement Spot Size
-
-
12 mm at 65 mm distance at 0 degrees
-
- Wavelength Reproducibility
-
-
± 1 nm*6
-
- Luminance*1*2
-
Measurement range: 0.005~5,000 cd/m2
Accuracy: ± 1.5% 100 to 5,000 cd/m2
± 2% 0.2 to 100 cd/m2
± 4% 0.05 to 0.2 cd/m2
± 8% from 0.005 to 0.05 cd/m2Repeatability (2σ)*3 ± 0.2% 100 to 5,000 cd/m2
± 0.5% 0.2 to 100 cd/m2
± 0.8% 0.05 to 0.2 cd/m2
± 8% from 0.005 to 0.05 cd/m2
- Color*1*2
-
Measurement range: 0.01 ~ 5,000 cd/m2
Accuracy: ±0.002 in CIE1931 x, y for white 100 to 5,000 cd/m2
±0.002 in CIE1931 x, y for white 0.2 to 100 cd/m2
±0.003 in CIE1931 x, y for white 0.05 to 0.2 cd/m2
± 0.006 in CIE 1931 x,y for white from 0.01 to 0.05 cd/m2Repeatability (2σ)*3 0.0005 in CIE1931 x, y for white 100 to 5,000 cd/m2
0.001 in CIE1931 x, y for white 0.2 to 100 cd/m2
0.002 in CIE1931 x, y for white 0.05 to 0.2 cd/m2
± 0.006 in CIE1931 x, y for white 0.01 to 0.05 cd/m2
- Stray Light
-
-25 dB max*4
- Polarized Error
-
< 2%
- Integration Time Range
-
100 μs to 5,000 ms (fast mode/normal mode)
- Measurement Speed*5
-
1 to 2 samples/sec for Y at 0.5 cd/m2
15 to 30 samples/sec for Y at 10 cd/m2
20 to 30 samples/sec for Y at 50 cd/m2
20 to 30 samples/sec for Y at 100 cd/m2
- Digital Resolution
-
16 bits
- Measurement Range
-
5 to 5,000 cd/m2
- Sampling Rate
-
-
100k samples/sec(adjustable)
-
- Contrast
-
-
Accuracy: ±1% (30 Hz AC/DC 10% sine wave)
±2% (60 Hz AC/DC 10% sine wave) -
Reproducibility: 1% (20 to 65 Hz AC/DC 10% sine wave)
-
- JEITA
-
-
Accuracy: ±0.5 dB (30 Hz AC/DC 10% sine wave)
-
Reproducibility: ±0.3 dB (30 Hz AC/DC 10% sine wave)
-
- Capture Function
-
One time/Continuous
- Operation Mode
-
-
1. USB 2.0: High speed device , using LightTouch uSpectrum library.
-
2. RS-232: For PC and embedded purposes, using SCPI command.
-
- Integration Mode
-
-
Auto/Manual
-
- Dark Calibration
-
-
Yes (Auto)
-
- Measuring Parameters (Flicker)
-
-
Max/Min, Average, RMS, Frequency, JEITA, VESA, Flicker Percentage (IES) and Flicker Index (IES)
-
- Dimensions
-
247 x 194 x 64 mm (H x W x D)
- Weight
-
-
2.5 ±0.2 kg
-
