로봇형 자동차 조명 휘도 측정 시스템
로봇형 스크린 광도계 (LPL Checker)
-

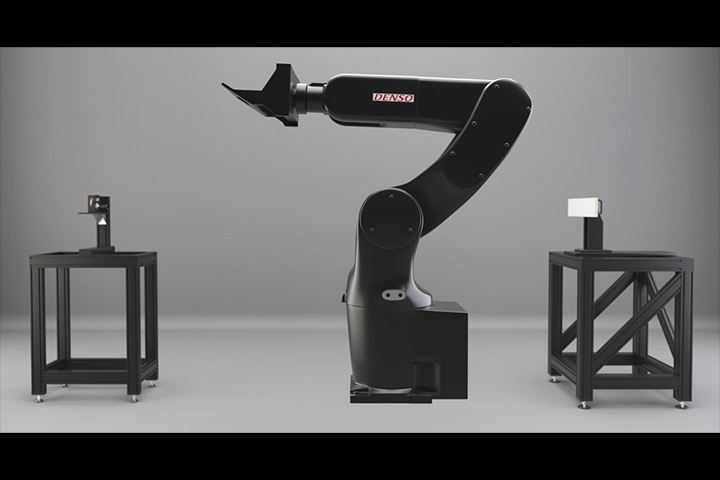

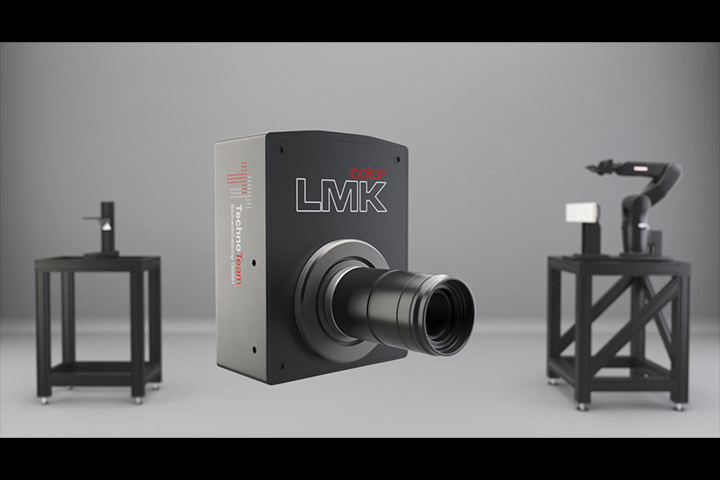

번호판 조명의 법규평가를 위해 LMK 6 카메라와 로봇을 사용하여 모든 측정을 자동화
-

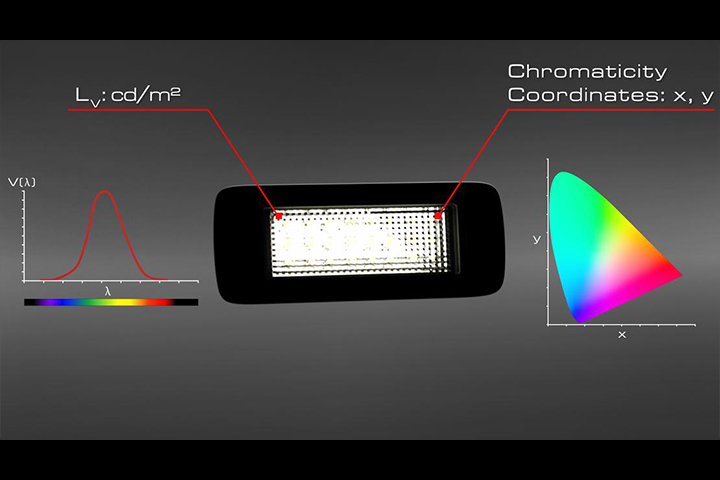

LMK 카메라가 로봇을 제어하고 이미지를 저장하여 번호판 휘도 측정에 대한 심층 분석 레포트를 제공
- Sensor
-
-
CCD - imaging matrix system
-
Standard resolution: 1380 x 1030 pixel
-
Higher resolution: 2448 x 2050 pixel, 4008 x 2672 pixel, 4008 x 4008 pixel
-
- Resolution (dynamic)
-
-
Single picture measurement - 1:1100 (~ 61 dB)
-
Multi picture measurement - 1:3600 (~ 71 dB)
-
Multi picture measurement - 1:10000000 (~140 dB)
-
A/D conversion - 12/14 Bit
-
- Measuring range
-
-
Setting the luminance measuring ranges by choosing the integration time from 100 µs...15 s.
-
Measuring range depending on lens (aperture value = k), e.g.: 1ms ... appr.1800 cd/m2 & 3s ... appr. 0.6 cd/m2 (k = min.) 1ms ... 60000 cd/m2 & 3s ... appr. 20 cd/m2 (k = max.)
-
Higher luminances can be achieved by using optional ND grey filters.
-
- Measurement time
-
-
down to a few milliseconds
-
- Photometrical measuring data
-
-
Camera RGB; Camera rg; L; Lxy; XYZ; dom. wavelength
-
- Geometrical measuring data
-
-
position, distance, squint
-
